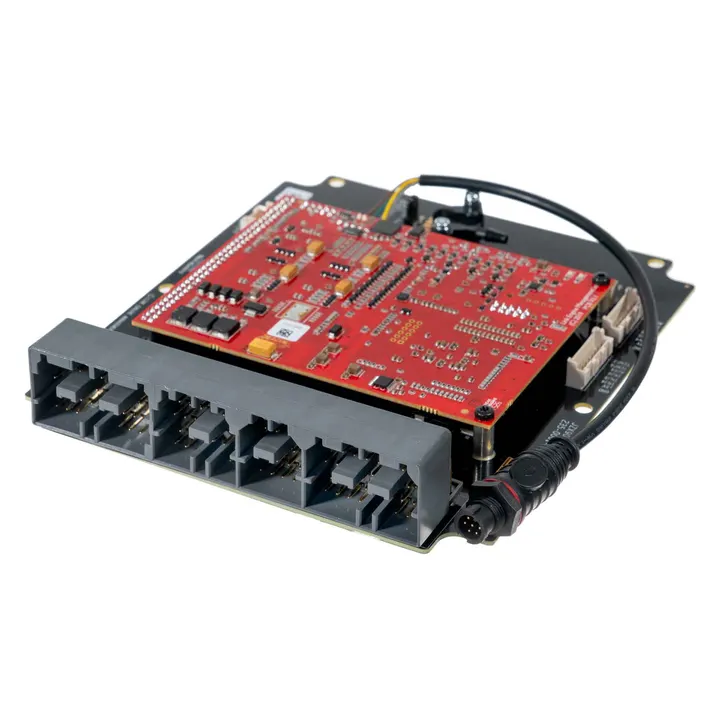

Link JZX90X (Toyota JZX90 1JZ-GTE) ECU

Key specs

DBW = drive-by-wire throttle channels · λ wideband = onboard wideband lambda (oxygen sensor) inputs · CAN = controller area network buses.

Features

• ✓Drive-by-wire
• ✕Onboard wideband
• ✓Knock control
• ✓Flex fuel
• ✓Traction control
• ✓Launch control
• ✓Boost control
• ✓Gearbox control
• ✓Onboard logging
• ?Ethernet
• ?USB
• ✕Built-in display

✓ published · ✕ not offered · ? not published. Some features, like traction control and launch control, mean different things by brand. See the glossary.

Details

Highlights

Fits: Toyota Chaser X90 with 1JZ-GTE non-VVT-i engine., Toyota Mark II X90 with 1JZ-GTE non-VVT-i engine., Toyota Cresta X90 with 1JZ-GTE non-VVT-i engine., Toyota Soarer JZZ30 with 1JZ-GTE non-VVT-i engine. Designed for manual transmission vehicles. If you have an automatic model, please contact your local Link ECU reseller to discuss Direct Automatic Transmission Control compatibility. This model includes an onboard MAP sensor. Most factory features are supported. This ECU will need an expansion connector before E-Throttle is usable. This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Code 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.

Part number

235-4000

Software

PCLink (free)

Logging

512MB onboard

Links

Product page ↗Price source ↗

Fits

Toyota Chaser / Mark II / Cresta · Toyota Soarer
