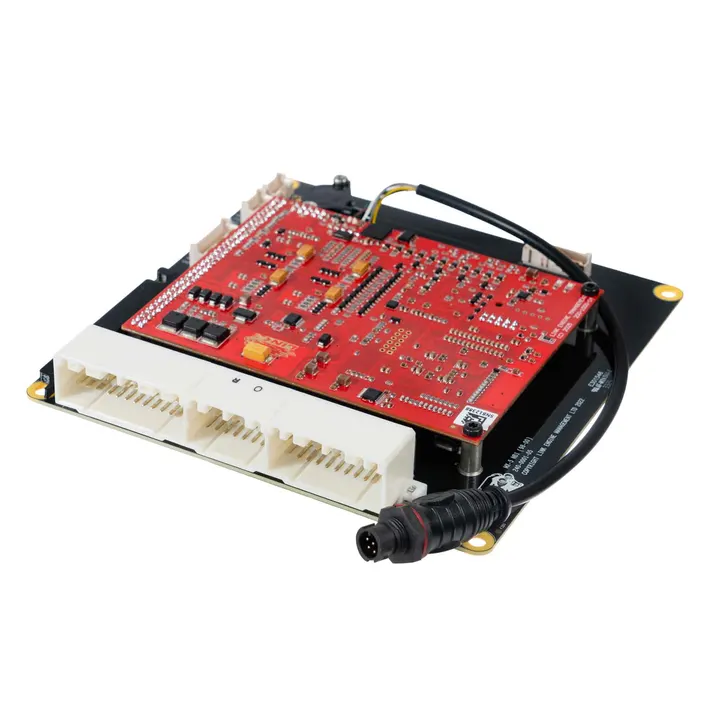

Link MX5NB1X (Mazda MX-5 NB1) ECU

Key specs

DBW = drive-by-wire throttle channels · λ wideband = onboard wideband lambda (oxygen sensor) inputs · CAN = controller area network buses.

Features

• ✓Drive-by-wire
• ✕Onboard wideband
• ✓Knock control
• ✓Flex fuel
• ✓Traction control
• ✓Launch control
• ✓Boost control
• ✓Gearbox control
• ✓Onboard logging
• ?Ethernet
• ?USB
• ✕Built-in display

✓ published · ✕ not offered · ? not published. Some features, like traction control and launch control, mean different things by brand. See the glossary.

Details

Highlights

Fits: Pre-Facelift Mazda MX5 NB1 with non-VVT 1.8L Engine from MY1998-2000. This ECU works for manual transmissions only. Includes onboard MAP sensor. Most factory features are supported. This ECU will need an expansion connector before E-Throttle is usable. This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Link PN 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.

Part number

240-4000

Software

PCLink (free)

Logging

512MB onboard

Links

Product page ↗Price source ↗

Fits

Mazda MX-5 Miata
