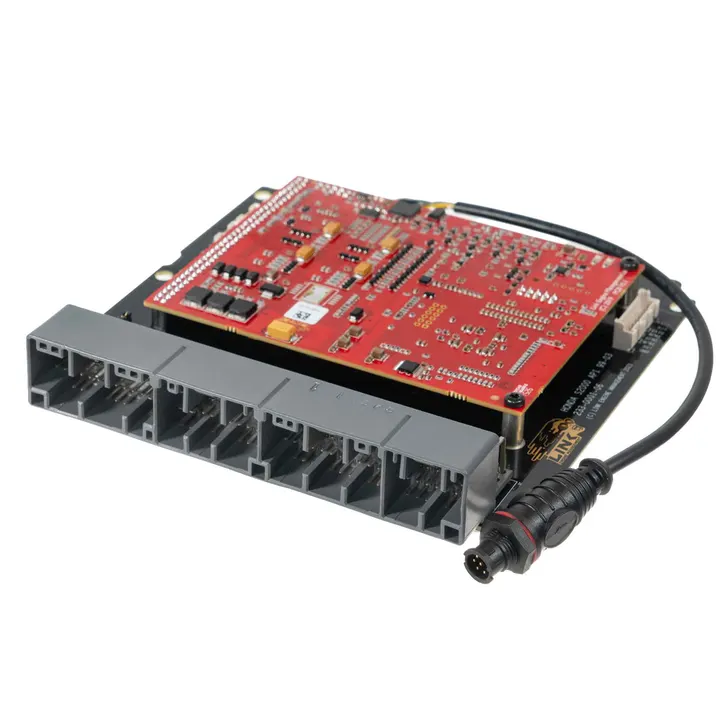

Link S2000X (Honda S2000 AP1) ECU
The Link S2000X (Honda S2000 AP1) is a mid-range plug-in engine control unit (ECU) from Link ECU. It has 8 injector and 8 ignition outputs, 1 drive-by-wire throttle channel and knock control. List price is US$1,735. 2 sellers list it from US$1,677 to US$1,735.
Prices checked . Specs from Link ECU's published data.
Key specs
DBW = drive-by-wire throttle channels · λ wideband = onboard wideband lambda (oxygen sensor) inputs · CAN = controller area network buses.
Features
- ✓Drive-by-wire
- ✕Onboard wideband
- ✓Knock control
- ✓Flex fuel
- ✓Traction control
- ✓Launch control
- ✓Boost control
- ✓Gearbox control
- ✓Onboard logging
- ?Ethernet
- ?USB
- ✕Built-in display
✓ published · ✕ not offered · ? not published. Some features, like traction control and launch control, mean different things by brand. See the glossary.
Details
- Highlights
- Fits: Honda S2000 AP1 from 1999-2004, Honda S2000 AP2 from 2005 (Non E-throttle models). This ECU works for manual transmissions only. This ECU doesn't support factory E-Throttle Models. Most factory features are supported. This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Code 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.
- Part number
- 233-4000
- Software
- PCLink (free)
- Logging
- 512MB onboard
- Links
- Product page ↗Price source ↗
- Fits
- Honda S2000
- Tuning
- Find a Link ECU tuner with a dyno
- Maker
- Link ECU: history, software and every model
