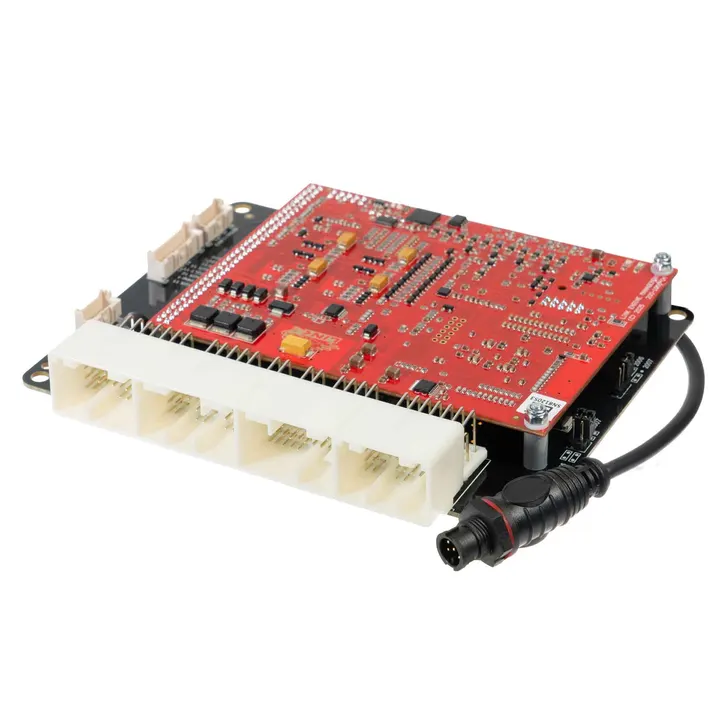

Link WRX107X (Subaru WRX & STI V10, 2006-07) ECU
The Link WRX107X (Subaru WRX & STI V10, 2006-07) is a mid-range plug-in engine control unit (ECU) from Link ECU. It has 8 injector and 8 ignition outputs, 1 drive-by-wire throttle channel and knock control. List price is US$2,195. 2 sellers list it from US$1,845 to US$2,195.
Prices checked . Specs from Link ECU's published data.
Key specs
DBW = drive-by-wire throttle channels · λ wideband = onboard wideband lambda (oxygen sensor) inputs · CAN = controller area network buses.
Features
- ✓Drive-by-wire
- ✕Onboard wideband
- ✓Knock control
- ✓Flex fuel
- ✓Traction control
- ✓Launch control
- ✓Boost control
- ✓Gearbox control
- ✓Onboard logging
- ?Ethernet
- ?USB
- ✕Built-in display
✓ published · ✕ not offered · ? not published. Some features, like traction control and launch control, mean different things by brand. See the glossary.
Details
- Highlights
- Fits: Subaru WRX Version 10, GD/GG with EJ25 engine, from 2006-2007, To confirm which you need, check pins A1-A3 on the OEM connector. This ECU works for manual transmissions only. Most factory features are supported. This ECU has built-in E-Throttle (Drive-by-Wire).
- Part number
- 225-4000
- Software
- PCLink (free)
- Logging
- 512MB onboard
- Links
- Product page ↗Price source ↗
- Fits
- Subaru Impreza WRX / STI
- Tuning
- Find a Link ECU tuner with a dyno
- Maker
- Link ECU: history, software and every model
Where to buy the WRX107X (Subaru WRX & STI V10, 2006-07)
2 sellers found
No sellers match. Try another region or turn off “In stock only”.
Prices as shown on each seller's site on , in their own currency, converted at 14 Oct 2026 rates. Shipping, import duty and tax vary. Check with the seller before you buy.
