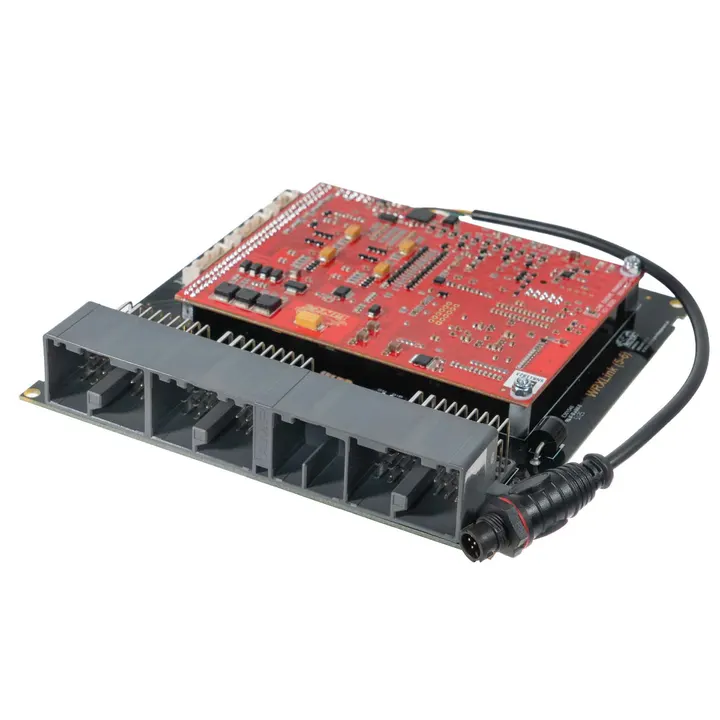

Link WRX6X (Subaru WRX & STI V5-6) ECU

Key specs

DBW = drive-by-wire throttle channels · λ wideband = onboard wideband lambda (oxygen sensor) inputs · CAN = controller area network buses.

Features

• ✓Drive-by-wire
• ✕Onboard wideband
• ✓Knock control
• ✓Flex fuel
• ✓Traction control
• ✓Launch control
• ✓Boost control
• ✓Gearbox control
• ✓Onboard logging
• ?Ethernet
• ?USB
• ✕Built-in display

✓ published · ✕ not offered · ? not published. Some features, like traction control and launch control, mean different things by brand. See the glossary.

Details

Highlights

Fits: Subaru WRX Version 5, GC8F with EJ20 engine from 1998-1999., Subaru WRX Version 6, GC8G with EJ20 engine from 1999-2000. This ECU works for manual transmissions only. Air temp sensor highly recommended. Most factory features are supported. This ECU requires an Expansion Loom before E-Throttle is usable. PCB V1.4 onwards of this Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Code 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provides not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.

Part number

228-4000

Software

PCLink (free)

Logging

512MB onboard

Links

Product page ↗Price source ↗

Fits

Subaru Impreza WRX / STI

Tuning

Find a Link ECU tuner with a dyno

Maker

Link ECU: history, software and every model
