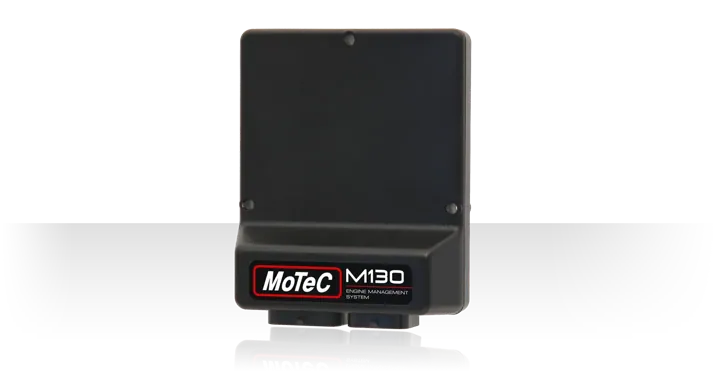

MoTeC M130 ECU
The MoTeC M130 is a professional wire-in engine control unit (ECU) from MoTeC. It has 10 injector and 8 ignition outputs, support for up to 8 cylinders, 1 drive-by-wire throttle channel and knock control. List price is US$2,395. 21 sellers list it from US$1,498 to US$3,536.
Prices checked . Specs from MoTeC's published data.
Key specs
DBW = drive-by-wire throttle channels · λ wideband = onboard wideband lambda (oxygen sensor) inputs · CAN = controller area network buses.
Features
- ✓Drive-by-wire
- ✕Onboard wideband
- ✓Knock control
- ✓Flex fuel
- ✓Traction control
- ✓Launch control
- ✓Boost control
- ✓Gearbox control
- ✓Onboard logging
- ✓Ethernet
- ✕USB
- ✕Built-in display
✓ published · ✕ not offered · ? not published. Some features, like traction control and launch control, mean different things by brand. See the glossary.
Details
- Highlights
- Compact M1; 8 P&H + 2 low-side injector outputs, 6 half-bridge, magnesium case; features depend on purchased package (GPA/GPR/GPRP)
- Software
- M1 Tune (free); packages, logging levels, i2 Pro and M1 Build paid
- Logging
- 250MB onboard (logging level licences)
- Case
- 127.5 × 107.5 × 38.7 mm
- Links
- Product page ↗Price source ↗
- Fits
- Toyota Hilux
- Tuning
- Find a MoTeC tuner with a dyno
- Maker
- MoTeC: history, software and every model
