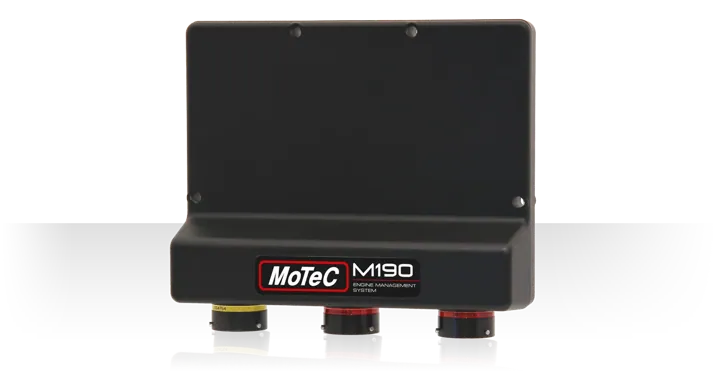

MoTeC M190 ECU
The MoTeC M190 is a motorsport wire-in engine control unit (ECU) from MoTeC. It has 24 injector and 12 ignition outputs, support for up to 12 cylinders, 2 drive-by-wire throttle channels and knock control. List price is US$5,295. 12 sellers list it from US$3,415 to US$6,504.
Prices checked . Specs from MoTeC's published data.
Key specs
DBW = drive-by-wire throttle channels · λ wideband = onboard wideband lambda (oxygen sensor) inputs · CAN = controller area network buses.
Features
- ✓Drive-by-wire
- ✕Onboard wideband
- ✓Knock control
- ✓Flex fuel
- ✓Traction control
- ✓Launch control
- ✓Boost control
- ✓Gearbox control
- ✓Onboard logging
- ✓Ethernet
- ✕USB
- ✕Built-in display
✓ published · ✕ not offered · ? not published. Some features, like traction control and launch control, mean different things by brand. See the glossary.
Details
- Highlights
- M150-class I/O with Autosport connectors, 12 P&H + 12 low-side injector, extra low-side aux
- Software
- M1 Tune (free); packages paid
- Logging
- 250MB onboard
- Case
- 162 × 127.5 × 40.5 mm
- Links
- Product page ↗Price source ↗
- Plug-ins
- MoTeC makes 30 model-specific plug-in fitments. Find one for your car
- Tuning
- Find a MoTeC tuner with a dyno
- Maker
- MoTeC: history, software and every model
