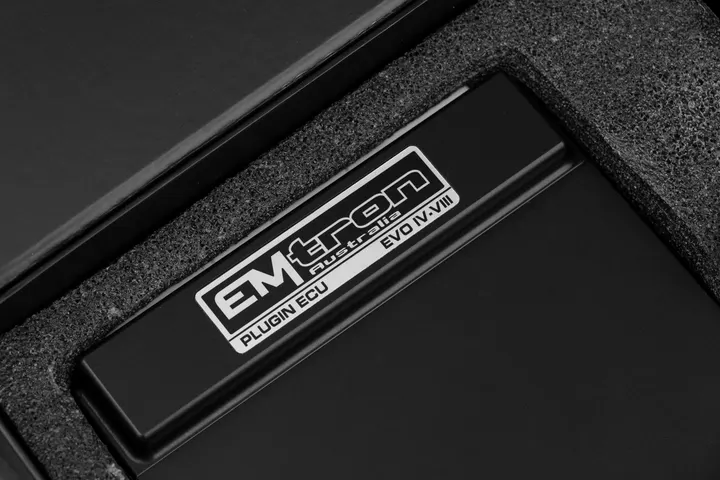

Emtron EVO IV-VIII Plug-in ECU
The Emtron EVO IV-VIII Plug-in is a professional plug-in engine control unit (ECU) from Emtron. It has 4 injector and 4 ignition outputs, 1 drive-by-wire throttle channel and knock control. List price is US$3,200. 2 sellers list it from US$3,084 to US$3,200.
Prices checked . Specs from Emtron's published data.
Key specs
DBW = drive-by-wire throttle channels · λ wideband = onboard wideband lambda (oxygen sensor) inputs · CAN = controller area network buses.
Features
- ✓Drive-by-wire
- ✕Onboard wideband
- ✓Knock control
- ✓Flex fuel
- ✓Traction control
- ✓Launch control
- ✓Boost control
- ?Gearbox control
- ✓Onboard logging
- ✓Ethernet
- ✕USB
- ✕Built-in display
✓ published · ✕ not offered · ? not published. Some features, like traction control and launch control, mean different things by brand. See the glossary.
Details
- Highlights
- Fits: Mitsubishi Lancer Evolution IV-VIII (CN9A, CP9A, CT9A). Plugs into the factory harness with no cutting or splicing. The factory coils are wasted spark on 2 outputs; up to 4 ignition outputs by reassigning factory pins. Drive by wire needs factory pins reassigned. Wideband lambda needs an Emtron ELC lambda-to-CAN module, sold separately. Ships in speed-density mode; Emtron recommends adding a 4 bar MAP sensor via the expansion port. On the EVO 8 an ECU output grounds the crank and cam sensors (immobiliser), so it must stay on for the engine to start.
- Part number
- 1609-52248
- Software
- Emtune (free)
- Logging
- 32MB onboard
- Links
- Product page ↗Price source ↗
- Fits
- Mitsubishi Lancer Evolution
- Tuning
- Find a Emtron tuner with a dyno
- Maker
- Emtron: history, software and every model
Where to buy the EVO IV-VIII Plug-in
2 sellers found
No sellers match. Try another region or turn off “In stock only”.
Prices as shown on each seller's site on , in their own currency, converted at 14 Oct 2026 rates. Shipping, import duty and tax vary. Check with the seller before you buy.
